Every picture tells your story

A new analytical instrument that allows scientists to access crystallization and formulation information at milliliter scale.

Every picture tells your story

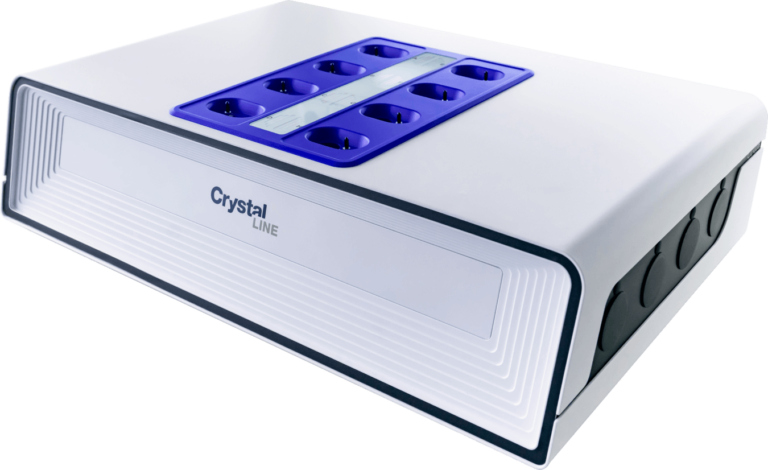

The Crystalline PV/RR combines temperature and turbidity measurements with real time particle imaging. With eight in-line high quality digital visualization probes reaching 0.63 microns per pixel, seeing what is happening in the vial has never been easier: no moving parts, no cumbersome insertion probes. With a robust design, the probes are contained in a sealed, pre-aligned and sturdy environment, giving the user walk-up access to eight parallel particle view cameras.

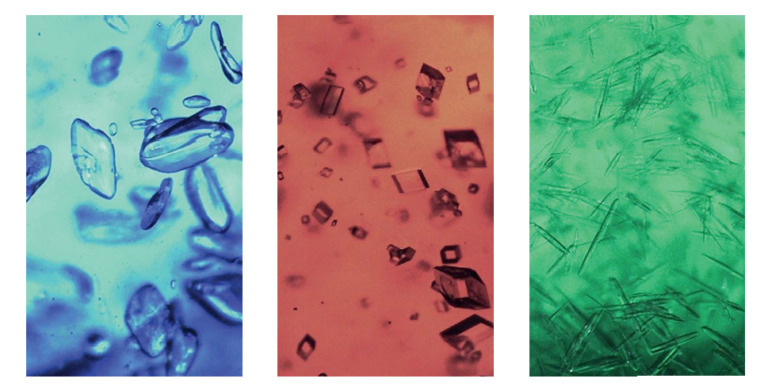

You can now visualize the complete crystallization or formulation processes, and access real time particle size and shape information at the smallest scale.

See what’s happening

Have you ever wondered what is happening during the crystallization or formulation processes? How do you know if the sample is aggregating, foaming or oiling out?

Take the guesswork out of crystallization studies with the Crystallline PV/RR. You can easily correlate the turbidity signals with visual information finally getting the complete picture of the crystallization or formulation processes.

• Polymorph and solvate screening
• Monitoring of habit changes
• Searching for less stable intermediates
• Controlling growth of certain polymorphs
• Develop and optimize your process
• Optimize and control your formulation process

The instrument comes with eight cameras positioned in a standard configuration, capable of up to 6.0 times magnification.

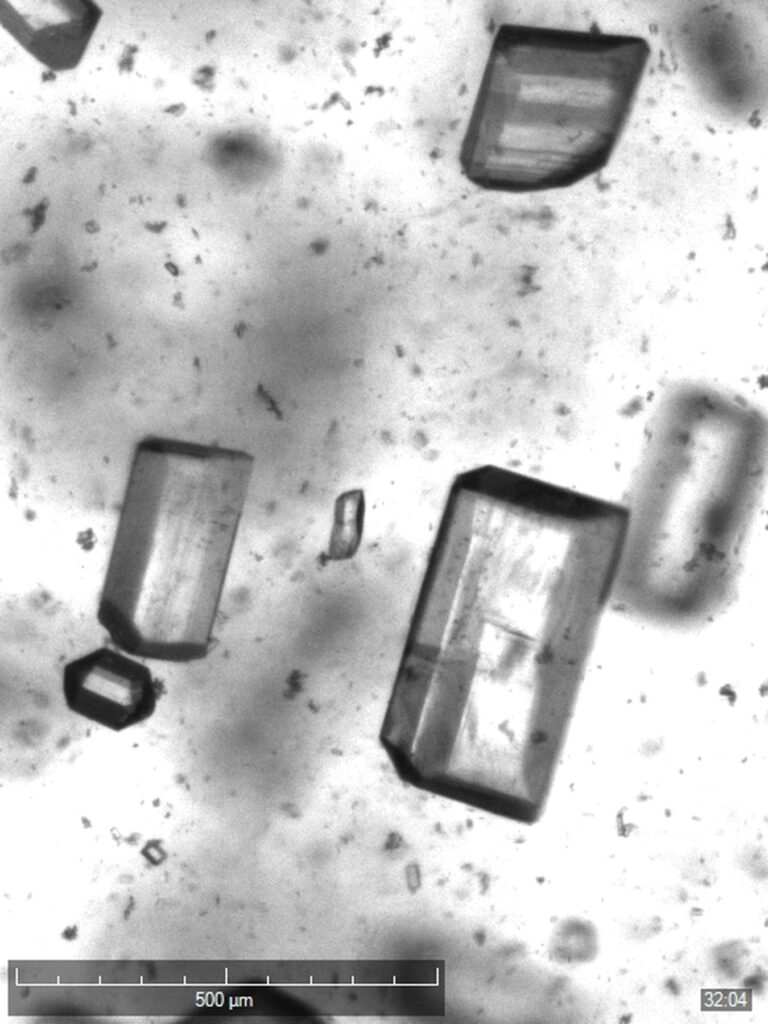

The resolution of 0.63 microns per pixel can be reached without any problems, making information close to nano scale easily available while you are performing your experiments.
