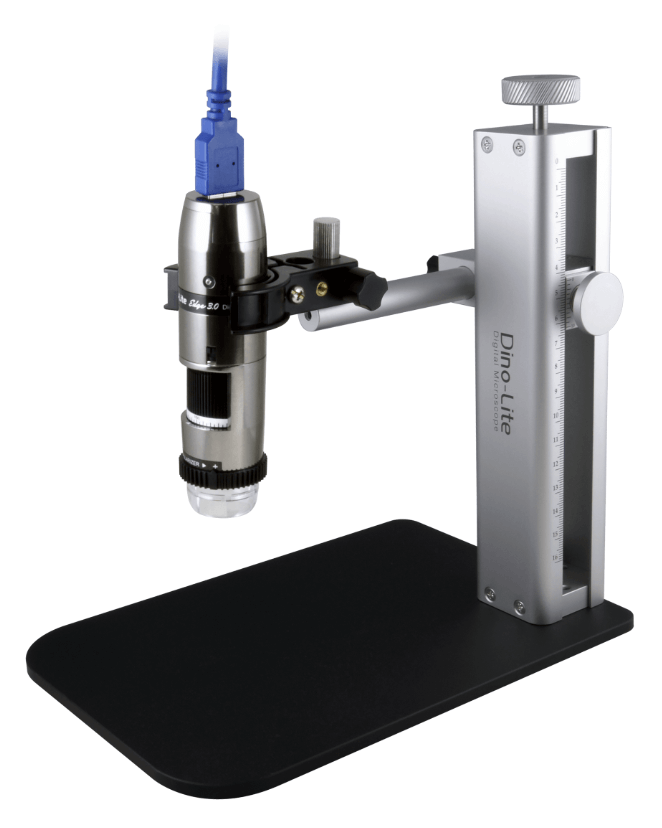

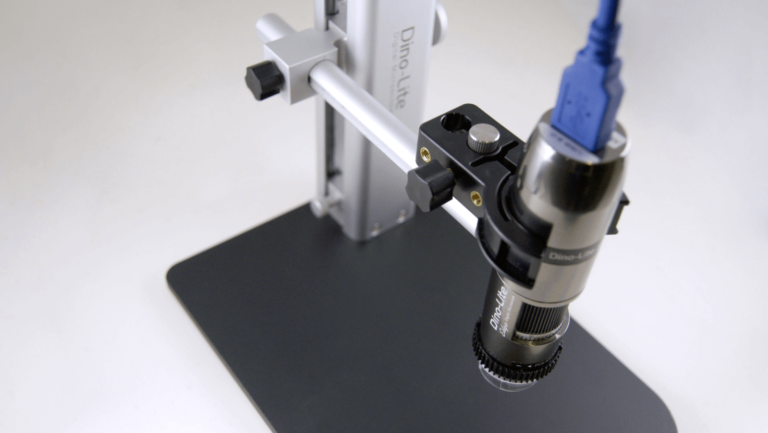

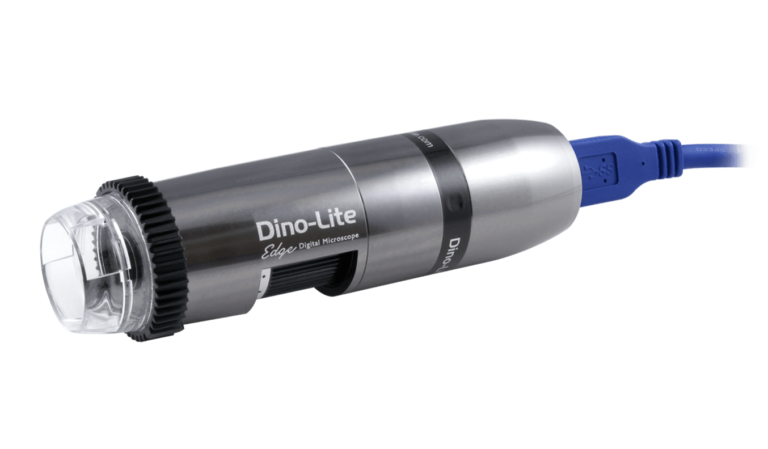

Dino-Lite AM73915MZT Digital Microscope

The Dino-Lite AM73915MZT is part of the High Speed range with USB 3.0 connection. It offers superb uncompressed image quality, high speed data transfer and color reproduction in a robust, compact and appealing metal housing.

The Dino-Lite AM73915MZT is a USB 3.0 model with a magnification range of 10x – 220x and a standard working distance of up to 6 cm. This model is member of the Dino-Lite Edge family with the latest, cutting-edge optics, an unmatched 5 megapixel sensor and several special features such as the Extended Depth of Field (EDOF), Enhanced Dynamic Range (EDR), Automatic Magnification Reading (AMR), Flexible LED Control (FLC), built-in polarization filter, full metal body, extensive measurement functions, calibration, exchangeable front caps and more.

With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. With the built-in automatic magnification reading (AMR), measurements can be performed easily and quickly. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc.

The AM73915MZT is one of the most high-end Dino-Lite products available and the top-level product within the Dino-Lite USB 3.0 range. For professionals who are looking for the best available image quality, advanced features this is the model of choice.

All the above features exist in the Long Working Distance model AM73915MZTL (10x-140x) working distance up to 15cm.

*EDOF/EDR only functions under Windows OS

Dino-Lite has been at the forefront of the image digitization sector since 2000 and as such is at the heart of the design and development of digital microscopes in Taiwan. Over the years, the Dino-Lite series digital handheld microscope and Dino-Eye series microscope eyepiece have evolved and expanded to better serve our customers, covering major markets in five different continents through our comprehensive network of distributors.
By adopting a combination of technologies, our products have been widely used in various sectors (but not limited to) of the industry, biomedicine, education, agriculture, and forensic for the purpose of inspection, quality control, production, research, and documentation. What’s more, they even cater to hobbyists.
For over a decade Dino-Lite has endeavored to create diverse value through products and services. One of our core principles is to pursue excellence through innovation and improvement while picturing long-term plans and strategies. Striving to be a leading and trustworthy supplier of high quality digital microscopes has always being our key principle.
